category:瓷片电容
product name:交流瓷介电容 1
marque:CT7 瓷介电容
view

explicate

高压  瓷介电容

交流瓷介电容器                               Safety Standard Recognized Ceramic Disc Capacitors
特征                                            Features
●CT7类获UL/VDE/FIMKO/SEMKO/DEMKO/CQC/       ●The type CT7 is recognized by UL/ VDE/ FIMKO/ CQC
NEMKO安全认证                                   /NEMKO/ DEMKO/ SEMKO
●采用阻燃环氧树脂包封                               ●Coated with flame-retardant epoxy resin
推荐用途                                        ■Recommended Applications
●主要用于家用电器、办公设备、电子仪器、及其他       ●Using as jumper wire、spark killer、antenna coupling、
电子产品作跨电源线、消火花、天地线耦合和旁         ground coupling、and bypass capacitors in household
路电容等。                                         appliances、office equipment、electronic equipment and
                                                   other electronic products.
名称组成                                        ■Explanation of Part Numbers
Example1:    C T7Y2    B      09     a       102     K     A
                   ①      ②      ③     ④       ⑤     ⑥     ⑦

①安全认证类型                                     ①Safety Standard Recognized Type

代号
安全认证

Code
Safety Standard Recognized
C T7Y2
X1:AC400V,Y2:AC250V
(CT7为安全认证产品型号)
C T7Y2
X1:AC400V,Y2:AC250V Safety (Safety Standard Recognized type CT7)
C T7Y1
X1:AC400V,Y1:AC250V
(CT7为安全认证产品型号)

C T7Y1
X1:AC400V,Y1:AC250V
(Safety Standard Recognized type CT7)

②温度特性                                         ②Temperature Characteristics

代号
温度特性
Temperature Characteristics
容量变化范围
Max Capacitance Change
温度范围
Temperature Range

IEC
EIA
B
2B4
Y5P
±10%
-25~85℃
E
2E4
Y5U
+20~-55%
F
2F4
Y5V
+30~-80%

③产品最大直径                                     ③Max. Product Dimensions
  09:产品最大直径9mm                               09: Max. Product Dimensions is 9 mm
④引线形式                                         ④Lead style

代号
a
b
c

Code
a
b
c
引线形式
内单弯
直腿
双弯
Lead style
Inside Crimped
Straight Lead
Double Crimped

⑤容量                                             ⑤Capacitance

容量代号Capacitance code
容量Capacitance
说明Explain
010
1pf
前两位为容量有效值,第三位表示其后零的个数
The first two digits are significant figures of capacitance and third one denote number of following zeros
470
47pf
471
470pf
102
1000pf
103
10000pf

⑥容量公差                                         ⑥Capacitance tolerance

代号
容量公差
代号
容量公差

Code
Capacitance tolerance
Code
Capacitance tolerance
K
±10%
S
-20~+50%
K
±10%
S
-20~+50%
M
±20%
Z
-20~+80%
M
±20%
Z
-20~+80%

⑦包装                                             ⑦Packaging

代号
包装

Code
Packaging
空白或A
散装
Nothing or A
Bulk
B
其它
B
Other

有关认证标准号                                  ■Related Standards Recognition

认证团体Certificated Body

标准号Standard NO.
认证号Recognition NO.
额定电压Rated Voltage
VDE       德国(Germany)
DIN EN132400:
1999-06
(IEC60384-14:1993-07,
TableII+A1:1995-06)
30004904

X1:AC400V

Y2:AC250V

FIMKO    芬兰(Finland)
F1 17127
SEMKO    瑞典(Sweden)
0129033/01-02
NEMKO   挪威(Norway)
P01101672
DEMKO    丹麦(Denmark)
310796-01
UL         美国(USA)
UL1414
E217400

AC250V

CQC       中国(CHINA)
GB/T14472-1998
CQC03001004528
X1Y1400VAC


●CT7Y2类-IEC60384-14-X1,Y2型                   ●Type CT7Y2-IEC60384-14-ClassX1,Y2
规格                                            Specifications

特性
规    格    值

Characteristics

Specifications

使用温度范围
-25℃~+85℃

Operating Temperature range
-25 to 85℃
标称电压
250VAC

Rated voltage

250VAC
测试电压
2.6KVAC保持1分钟
Dielectric withstanding voltage
Apply a voltage of 2.6KVAC
for 1 min.
标称容量
1±0.2 KHz,
1~5V,
20℃下测试

Capacitance
Within the specified tolerance,when measured at 1±0.2 KHz,
1 to 5Vrms and 20℃
损耗角正切值
(tgδ)
1±0.2 KHz,
1~5V, 20℃下测试
B、E、F≤250×10-4

Dissipation factor(tgδ)
Max. at 1±0.2 KHz,
1 to 5Vrms, and 20℃ for
B、E、F≤250×10-4
绝缘电阻
500VDC充电1分钟后测试不小于10000MΩ

Insulation
resistance
10000 MΩ  min. at 500 VDC and 1 minute electrification

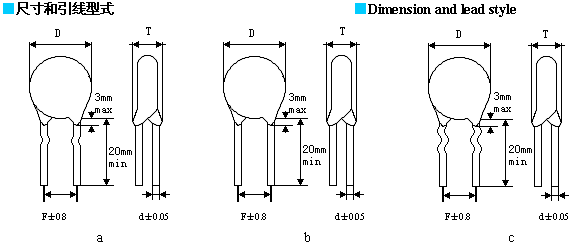

尺寸和引线型式                                  ■Dimension and lead style

F±0.8                 d±0.05                 F±0.8                d±0.05                   F±0.8                d±0.05
       a                                                   b                                                c

电容规格和尺寸                                  ■Form Of Capacitance And Dimension

型号Code
容量Capacitance
温度特性
T.C.
尺寸Dimension(mm)
容量Cap.
公差Tol.
Dmax
Tmax
F
d
CT7Y2B07□101K□
100pf
±10%
2B4
(Y5P)
7.0
6.0
7.5
0.60
CT7Y2B07□121K□
120pf
7.0
6.0
7.5
0.60
CT7Y2B07□151K□
150pf
7.0
6.0
7.5
0.60
CT7Y2B07□181K□
180pf
7.0
6.0
7.5
0.60
CT7Y2B07□221K□
220pf
7.0
6.0
7.5
0.60
CT7Y2B07□271K□
270pf
7.0
6.0
7.5
0.60
CT7Y2B08□331K□
330pf
8.0
6.0
7.5
0.60
CT7Y2B08□391K□
390pf
8.0
6.0
7.5
0.60
CT7Y2B08□471K□
470pf
8.0
6.0
7.5
0.60
CT7Y2B09□561K□
560pf
9.0
6.0
7.5
0.60
CT7Y2B09□681K□
680pf
9.0
6.0
7.5
0.60
CT7Y2B10□821K□
820pf
10.0
6.0
7.5
0.60
CT7Y2B11□102K□
1000pf
11.0
6.0
7.5
0.60
CT7Y2B12□122K□
1200pf
12.0
6.0
7.5
0.60




型号Code
容量Capacitance
温度特性
T.C.
尺寸Dimension(mm)
容量Cap.
公差Tol.
Dmax
Tmax
F
d
CT7Y2B14□182K□
1800pf
±10%
2B4
(Y5P)
14.0
6.0
7.5
0.60
CT7Y2B15□222K□
2200pf
15.0
6.0
10.0
0.70
CT7Y2E08□102M□
1000pf
±20%
2E4
(Y5U)
8.0
6.0
7.5
0.60
CT7Y2E08□122M□
1200pf
8.0
6.0
7.5
0.60
CT7Y2E10□182M□
1800pf
10.0
6.0
7.5
0.60
CT7Y2E10□222M□
2200pf
10.0
6.0
7.5
0.60
CT7Y2E11□272M□
2700pf
11.0
6.0
7.5
0.60
CT7Y2E12□332M□
3300pf
12.0
6.0
7.5
0.60
CT7Y2E14□392M□
3900pf
14.0
6.0
7.5
0.60
CT7Y2E14□472M□
4700pf
14.0
6.0
7.5
0.60
CT7Y2F07□102M□
1000pf
±20%
2F4
(Y5V)
7.0
6.0
7.5
0.60
CT7Y2F08□152M□
1500pf
8.0
6.0
7.5
0.60
CT7Y2F08□182M□
1800pf
8.0
6.0
7.5
0.60
CT7Y2F08□222M□
2200pf
8.0
6.0
7.5
0.60
CT7Y2F09□272M□
2700pf
9.0
6.0
7.5
0.60
CT7Y2F10□332M□
3300pf
10.0
6.0
7.5
0.60
CT7Y2F11□392M□
3900pf
11.0
6.0
7.5
0.60
CT7Y2F12□472M□
4700pf
12.0
6.0
7.5
0.60
CT7Y2F13□562M□
5600pf
13.0
6.0
7.5
0.60
CT7Y2F14□682M□
6800pf
14.0
6.0
7.5
0.60
CT7Y2F16□103M□
10000pf
16.0
6.0
10.0
0.70
注Note:  │      └□包装Packaging:  A或空白A or Nothing(散包Bulk);B(其他Other)
         □引线形式Lead Style

标志                                            Marking

标志             Marking Item
例样              Example
产品厂标 Manufacture chop

温度特性       T.C.
F
标称容量   Capacitance
472
容量公差
Capacitance tolerance
M
标称电压 Rated voltage
Y2:250V~
认证标志
Recognition Marking
VDE          FIMKO
SEMKO       NEMKO  N
DEMKO  D  UL
CQC

包装形式                                        Packing Styles
●散包                                              ●Bulk
聚乙烯塑料袋装(200,250,500,1000pcs./包)                Polyethylene bag:(200,250,500,1000pcs./ bag)
●其它                                              ●Other
包封形式按客户要求                                  Packaging style’s need for customer


●CT7Y1类-IEC60384-14-X1,Y1型                    ●Type CT7Y1-IEC60384-14-ClassX1,Y1
规格                                             Specifications

特征
规    格    值

Characteristics

Specifications

使用温度范围
-25℃~+85℃

Operating Temperature range
-25 to 85℃
标称电压
400VAC

Rated voltage

400VAC
测试电压
4.0KVAC保持1分钟
Dielectric withstanding Voltage
Apply a voltage of 4.0KVAC
For 1 min.
标称容量
1±0.2 KHz,
1~5V,
20℃下测试

Capacitance
Within the specified tolerance,when measured at 1±0.2 KHz,
1 to 5Vrms and 20℃
损耗角正切值
(tgδ)
1±0.2 KHz,
1~5V, 20℃下测试
B、E、F≤250×10-4

Dissipation factor(tgδ)
Max. at 1±0.2 KHz,
1 to 5Vrms, and 20℃ for
B、E、F≤250×10-4
绝缘电阻
500VDC充电1分钟后测试不小于10000MΩ

Insulation
resistance
10000 MΩ min. at 500 VDC and
1 minute electrification



























尺寸和引线型式                                   ■Dimension and lead style

F±0.8                 d±0.05                 F±0.8                d±0.05                   F±0.8                d±0.05
       a                                                b                                                   c


电容规格和尺寸                                   ■Form Of Capacitance And Dimension

型号Code
容量Capacitance
温度特性
T.C.
尺寸Dimension(mm)
容量Cap.
公差Tol.
Dmax
Tmax
F
d
CT7Y1B08□101K□
100pf
±10%
2B4
(Y5P)
8.0
7.0
10.0
0.70
CT7Y1B08□121K□
120pf
8.0
7.0
10.0
0.70
CT7Y1B08□151K□
150pf
8.0
7.0
10.0
0.70
CT7Y1B08□181K□
180pf
8.0
7.0
10.0
0.70
CT7Y1B09□221K□
220pf
9.0
7.0
10.0
0.70
CT7Y1B09□271K□
270pf
9.0
7.0
10.0
0.70
CT7Y1B09□331K□
330pf
9.0
7.0
10.0
0.70
CT7Y1B10□391K□
390pf
10.0
7.0
10.0
0.70
CT7Y1B10□471K□
470pf
10.0
7.0
10.0
0.70
CT7Y1B11□561K□
560pf
11.0
7.0
10.0
0.70
CT7Y1B11□681K□
680pf
11.0
7.0
10.0
0.70
CT7Y1B12□821K□
820pf
12.0
7.0
10.0
0.70
CT7Y1B14□102K□
1000pf
14.0
7.0
10.0
0.70



型号Code
容量Capacitance
温度特性
T.C.
尺寸Dimension(mm)
容量Cap.
公差Tol.
Dmax
Tmax
F
d
CT7Y1E08□471M□
470pf
±20%
2E4
(Y5U)
8.0
7.0
10.0
0.70
CT7Y1E10□102M□
1000pf
10.0
7.0
10.0
0.70
CT7Y1E10□122M□
1200pf
10.0
7.0
10.0
0.70
CT7Y1E12□182M□
1800pf
12.0
7.0
10.0
0.70
CT7Y1E12□222M□
2200pf
12.0
7.0
10.0
0.70
CT7Y1E14□272M□
2700pf
14.0
7.0
10.0
0.70
CT7Y1E14□332M□
3300pf
14.0
7.0
10.0
0.70
CT7Y1E16□392M□
3900pf
16.0
7.0
10.0
0.70
CT7Y1E16□472M□
4700pf
16.0
7.0
10.0
0.70
CT7Y1F08□102M□
1000pf
±20%
2F4
(Y5V)
8.0
7.0
10.0
0.70
CT7Y1F10□152M□
1500pf
10.0
7.0
10.0
0.70
CT7Y1F10□182M□
1800pf
10.0
7.0
10.0
0.70
CT7Y1F11□222M□
2200pf
11.0
7.0
10.0
0.70
CT7Y1F12□272M□
2700pf
12.0
7.0
10.0
0.70
CT7Y1F13□332M□
3300pf
13.0
7.0
10.0
0.70
CT7Y1F14□392M□
3900pf
14.0
7.0
10.0
0.70
CT7Y1F14□472M□
4700pf
14.0
7.0
10.0
0.70
CT7Y1F15□562M□
5600pf
15.0
7.0
10.0
0.70
CT7Y1F16□682M□
6800pf
16.0
7.0
10.0
0.70
注Note:  │      └□包装Packaging: A或空白A or Nothing(散包Bulk);B(其他Other)
        □引线形式Lead Style

标志                                             Marking

标志           Marking Item
例样          Example
产品厂标 Manufacture chop

温度特性       T.C.
F
标称容量   Capacitance
472
容量公差
Capacitance tolerance
M
标称电压 Rated voltage
Y1:250V
认证标志
Recognition Marking
VDE          FIMKO
SEMKO       NEMKO
DEMKO       UL
CQC

包装形式                                        Packing Styles
●散包                                              ●Bulk
聚乙烯塑料袋装(200,250,500,1000pcs./包)                Polyethylene Bag:(200,250,500,1000pcs./ bag)
●其它                                              ●Other
包封形式按客户要求                                  Packaging style’s need for customer

 Y电容(交流瓷介电容 高压瓷介电容


Copyright HUAXINGLONG ELECTRONICS CO., LIMITED, ZHUHAI CITY All rights reserved Tel:0756- 2266731
Fax:0756-3362716E-mail:sales#zhese.net    xtz#zhese.net ( please change # to @ )  粤ICP备09008950号
