交流瓷介电容器 Safety Standard Recognized Ceramic Disc Capacitors
■特征 ■Features
●CT7类获UL/VDE/FIMKO/SEMKO/DEMKO/CQC/ ●The type CT7 is recognized by UL/ VDE/ FIMKO/ CQC
NEMKO安全认证 /NEMKO/ DEMKO/ SEMKO
●采用阻燃环氧树脂包封 ●Coated with flame-retardant epoxy resin
■推荐用途 ■Recommended Applications
●主要用于家用电器、办公设备、电子仪器、及其他 ●Using as jumper wire、spark killer、antenna coupling、
电子产品作跨电源线、消火花、天地线耦合和旁 ground coupling、and bypass capacitors in household
路电容等。 appliances、office equipment、electronic equipment and
other electronic products.
■名称组成 ■Explanation of Part Numbers
Example1: C T7Y2 B 09 a 102 K A
① ② ③ ④ ⑤ ⑥ ⑦
①安全认证类型 ①Safety Standard Recognized Type
|
代号 |
安全认证 |
|
Code |
Safety Standard Recognized |
|
C T7Y2 |
X1:AC400V,Y2:AC250V
(CT7为安全认证产品型号) |
C T7Y2 |
X1:AC400V,Y2:AC250V Safety (Safety Standard Recognized type CT7) |
|
C T7Y1 |
X1:AC400V,Y1:AC250V
(CT7为安全认证产品型号) |
|
C T7Y1 |
X1:AC400V,Y1:AC250V
(Safety Standard Recognized type CT7) |
②温度特性 ②Temperature Characteristics
|
代号 |
温度特性
Temperature Characteristics |
容量变化范围
Max Capacitance Change |
温度范围
Temperature Range |
|
|
IEC |
EIA |
|
B |
2B4 |
Y5P |
±10% |
-25～85℃ |
|
E |
2E4 |
Y5U |
+20～-55% |
|
F |
2F4 |
Y5V |
+30～-80% |
③产品最大直径 ③Max. Product Dimensions
09:产品最大直径9mm 09: Max. Product Dimensions is 9 mm
④引线形式 ④Lead style
|
代号 |
a |
b |
c |
|
Code |
a |
b |
c |
|
引线形式 |
内单弯 |
直腿 |
双弯 |
Lead style |
Inside Crimped |
Straight Lead |
Double Crimped |
⑤容量 ⑤Capacitance
|
容量代号Capacitance code |
容量Capacitance |
说明Explain |
|
010 |
1pf |
前两位为容量有效值,第三位表示其后零的个数
The first two digits are significant figures of capacitance and third one denote number of following zeros |
|
470 |
47pf |
|
471 |
470pf |
|
102 |
1000pf |
|
103 |
10000pf |
⑥容量公差 ⑥Capacitance tolerance
|
代号 |
容量公差 |
代号 |
容量公差 |
|
Code |
Capacitance tolerance |
Code |
Capacitance tolerance |
|
K |
±10% |
S |
-20～+50% |
K |
±10% |
S |
-20～+50% |
|
M |
±20% |
Z |
-20～+80% |
M |
±20% |
Z |
-20～+80% |
⑦包装 ⑦Packaging
|
代号 |
包装 |
|
Code |
Packaging |
|
空白或A |
散装 |
Nothing or A |
Bulk |
|
B |
其它 |
B |
Other |
■有关认证标准号 ■Related Standards Recognition
认证团体Certificated Body |
标准号Standard NO. |
认证号Recognition NO. |
额定电压Rated Voltage |
|
VDE 德国(Germany) |
DIN EN132400:
1999-06
(IEC60384-14:1993-07,
TableII+A1:1995-06) |
30004904 |
X1:AC400V
Y2:AC250V |
|
FIMKO 芬兰(Finland) |
F1 17127 |
|
SEMKO 瑞典(Sweden) |
0129033/01-02 |
|
NEMKO 挪威(Norway) |
P01101672 |
|
DEMKO 丹麦(Denmark) |
310796-01 |
|
UL 美国(USA) |
UL1414 |
E217400 |
AC250V |
|
CQC 中国(CHINA) |
GB/T14472-1998 |
CQC03001004528 |
X1Y1400VAC |
●CT7Y2类-IEC60384-14-X1,Y2型 ●Type CT7Y2-IEC60384-14-ClassX1,Y2
■规格 ■Specifications
|
特性 |
规 格 值 |
|
Characteristics |
Specifications |
|
使用温度范围 |
-25℃～+85℃ |
|
Operating Temperature range |
-25 to 85℃ |
|
标称电压 |
250VAC |
Rated voltage |
250VAC |
|
测试电压 |
2.6KVAC保持1分钟 |
Dielectric withstanding voltage |
Apply a voltage of 2.6KVAC
for 1 min. |
|
标称容量 |
1±0.2 KHz,
1～5V,
20℃下测试 |
|
Capacitance |
Within the specified tolerance,when measured at 1±0.2 KHz,
1 to 5Vrms and 20℃ |
|
损耗角正切值
（tgδ） |
1±0.2 KHz,
1～5V, 20℃下测试
B、E、F≤250×10-4 |
|
Dissipation factor(tgδ) |
Max. at 1±0.2 KHz,
1 to 5Vrms, and 20℃ for
B、E、F≤250×10-4 |
|
绝缘电阻 |
500VDC充电1分钟后测试不小于10000MΩ |
|
Insulation
resistance |
10000 MΩ min. at 500 VDC and 1 minute electrification |

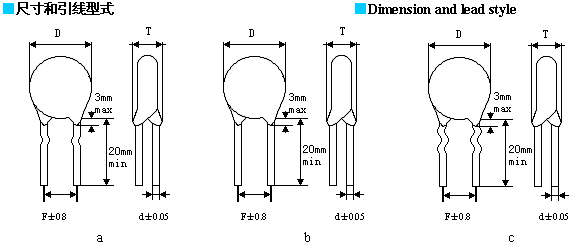

■尺寸和引线型式 ■Dimension and lead style
|
F±0.8 d±0.05 F±0.8 d±0.05 F±0.8 d±0.05 |
|
a b c |
■电容规格和尺寸 ■Form Of Capacitance And Dimension
|
型号Code |
容量Capacitance |
温度特性
T.C. |
尺寸Dimension(mm) |
|
容量Cap. |
公差Tol. |
Dmax |
Tmax |
F |
d |
|
CT7Y2B07□101K□ |
100pf |
±10% |
2B4
(Y5P) |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B07□121K□ |
120pf |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B07□151K□ |
150pf |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B07□181K□ |
180pf |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B07□221K□ |
220pf |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B07□271K□ |
270pf |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B08□331K□ |
330pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B08□391K□ |
390pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B08□471K□ |
470pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B09□561K□ |
560pf |
9.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B09□681K□ |
680pf |
9.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B10□821K□ |
820pf |
10.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B11□102K□ |
1000pf |
11.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B12□122K□ |
1200pf |
12.0 |
6.0 |
7.5 |
0.60 |
|
型号Code |
容量Capacitance |
温度特性
T.C. |
尺寸Dimension(mm) |
|
容量Cap. |
公差Tol. |
Dmax |
Tmax |
F |
d |
|
CT7Y2B14□182K□ |
1800pf |
±10% |
2B4
(Y5P) |
14.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2B15□222K□ |
2200pf |
15.0 |
6.0 |
10.0 |
0.70 |
|
CT7Y2E08□102M□ |
1000pf |
±20% |
2E4
(Y5U) |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E08□122M□ |
1200pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E10□182M□ |
1800pf |
10.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E10□222M□ |
2200pf |
10.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E11□272M□ |
2700pf |
11.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E12□332M□ |
3300pf |
12.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E14□392M□ |
3900pf |
14.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2E14□472M□ |
4700pf |
14.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F07□102M□ |
1000pf |
±20% |
2F4
(Y5V) |
7.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F08□152M□ |
1500pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F08□182M□ |
1800pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F08□222M□ |
2200pf |
8.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F09□272M□ |
2700pf |
9.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F10□332M□ |
3300pf |
10.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F11□392M□ |
3900pf |
11.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F12□472M□ |
4700pf |
12.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F13□562M□ |
5600pf |
13.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F14□682M□ |
6800pf |
14.0 |
6.0 |
7.5 |
0.60 |
|
CT7Y2F16□103M□ |
10000pf |
16.0 |
6.0 |
10.0 |
0.70 |
|
注Note: │ └□包装Packaging: A或空白A or Nothing(散包Bulk);B(其他Other)
□引线形式Lead Style |
■标志 ■Marking
|
标志 Marking Item |
例样 Example |
|
产品厂标 Manufacture chop |
|
|
|
温度特性 T.C. |
F |
|
标称容量 Capacitance |
472 |
|
容量公差
Capacitance tolerance |
M |
|
标称电压 Rated voltage |
Y2:250V～ |
|
认证标志
Recognition Marking |
VDE FIMKO
SEMKO NEMKO N
DEMKO D UL
CQC |
■包装形式 ■Packing Styles
●散包 ●Bulk
聚乙烯塑料袋装(200,250,500,1000pcs./包) Polyethylene bag:(200,250,500,1000pcs./ bag)
●其它 ●Other
包封形式按客户要求 Packaging style’s need for customer
●CT7Y1类-IEC60384-14-X1,Y1型 ●Type CT7Y1-IEC60384-14-ClassX1,Y1
■规格 ■Specifications
|
特征 |
规 格 值 |
|
Characteristics |
Specifications |
|
使用温度范围 |
-25℃～+85℃ |
|
Operating Temperature range |
-25 to 85℃ |
|
标称电压 |
400VAC |
Rated voltage |
400VAC |
|
测试电压 |
4.0KVAC保持1分钟 |
Dielectric withstanding Voltage |
Apply a voltage of 4.0KVAC
For 1 min. |
|
标称容量 |
1±0.2 KHz,
1～5V,
20℃下测试 |
|
Capacitance |
Within the specified tolerance,when measured at 1±0.2 KHz,
1 to 5Vrms and 20℃ |
|
损耗角正切值
（tgδ） |
1±0.2 KHz,
1～5V, 20℃下测试
B、E、F≤250×10-4 |
|
Dissipation factor(tgδ) |
Max. at 1±0.2 KHz,
1 to 5Vrms, and 20℃ for
B、E、F≤250×10-4 |
|
绝缘电阻 |
500VDC充电1分钟后测试不小于10000MΩ |
|
Insulation
resistance |
10000 MΩ min. at 500 VDC and
1 minute electrification |
■尺寸和引线型式 ■Dimension and lead style
|
F±0.8 d±0.05 F±0.8 d±0.05 F±0.8 d±0.05 |
|
a b c |
■电容规格和尺寸 ■Form Of Capacitance And Dimension
|
型号Code |
容量Capacitance |
温度特性
T.C. |
尺寸Dimension(mm) |
|
容量Cap. |
公差Tol. |
Dmax |
Tmax |
F |
d |
|
CT7Y1B08□101K□ |
100pf |
±10% |
2B4
(Y5P) |
8.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B08□121K□ |
120pf |
8.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B08□151K□ |
150pf |
8.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B08□181K□ |
180pf |
8.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B09□221K□ |
220pf |
9.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B09□271K□ |
270pf |
9.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B09□331K□ |
330pf |
9.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B10□391K□ |
390pf |
10.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B10□471K□ |
470pf |
10.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B11□561K□ |
560pf |
11.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B11□681K□ |
680pf |
11.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B12□821K□ |
820pf |
12.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1B14□102K□ |
1000pf |
14.0 |
7.0 |
10.0 |
0.70 |
|
型号Code |
容量Capacitance |
温度特性
T.C. |
尺寸Dimension(mm) |
|
容量Cap. |
公差Tol. |
Dmax |
Tmax |
F |
d |
|
CT7Y1E08□471M□ |
470pf |
±20% |
2E4
(Y5U) |
8.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E10□102M□ |
1000pf |
10.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E10□122M□ |
1200pf |
10.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E12□182M□ |
1800pf |
12.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E12□222M□ |
2200pf |
12.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E14□272M□ |
2700pf |
14.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E14□332M□ |
3300pf |
14.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E16□392M□ |
3900pf |
16.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1E16□472M□ |
4700pf |
16.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F08□102M□ |
1000pf |
±20% |
2F4
(Y5V) |
8.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F10□152M□ |
1500pf |
10.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F10□182M□ |
1800pf |
10.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F11□222M□ |
2200pf |
11.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F12□272M□ |
2700pf |
12.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F13□332M□ |
3300pf |
13.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F14□392M□ |
3900pf |
14.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F14□472M□ |
4700pf |
14.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F15□562M□ |
5600pf |
15.0 |
7.0 |
10.0 |
0.70 |
|
CT7Y1F16□682M□ |
6800pf |
16.0 |
7.0 |
10.0 |
0.70 |
|
注Note: │ └□包装Packaging: A或空白A or Nothing(散包Bulk);B(其他Other)
□引线形式Lead Style |
■标志 ■Marking
|
标志 Marking Item |
例样 Example |
|
产品厂标 Manufacture chop |
|
|
|
温度特性 T.C. |
F |
|
标称容量 Capacitance |
472 |
|
容量公差
Capacitance tolerance |
M |
|
标称电压 Rated voltage |
Y1:250V |
|
认证标志
Recognition Marking |
VDE FIMKO
SEMKO NEMKO
DEMKO UL
CQC |
■包装形式 ■Packing Styles
●散包 ●Bulk
聚乙烯塑料袋装(200,250,500,1000pcs./包) Polyethylene Bag:(200,250,500,1000pcs./ bag)
●其它 ●Other
包封形式按客户要求 Packaging style’s need for customer |
